2. Create Inner Portal Ring

In this section, you will learn how to add an inner ring to the particle sparks that provides a definitive shape for the mystic portal and a source for loose-flying particles.

In this section, you will learn how to add an inner ring to the particle sparks that provides a definitive shape for the mystic portal and a source for loose-flying particles.

Copying and Renaming the Second Emitter

Inside the Niagara System you created, copy the first emitter.

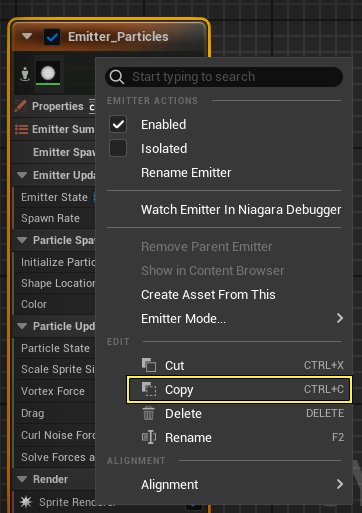

1. On the emitter, right-click and select Copy from the context menu.



2. Click next to the first emitter stack in the empty graph area and press Ctrl V or right-click to open the context menu and select Paste. The new emitter stack appears in the graph.



3. On the new emitter, press F2 to rename the new emitter, or right-click the new emitter and select Rename from the context menu.
